型号 Model |

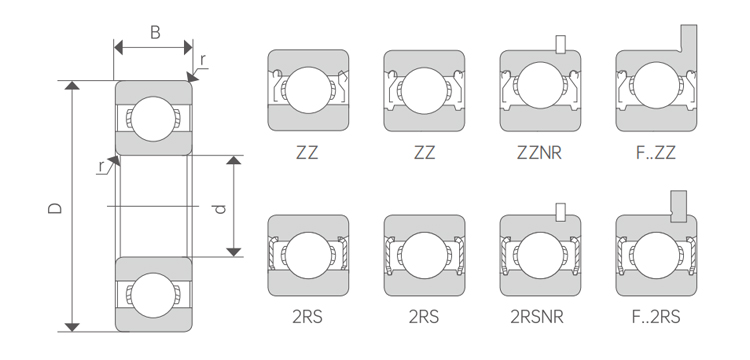

尺寸 Dimension |
基本额定载荷 Basic Load Roting |
钢球 Balls |
极限转速 Limiting Speed (r/min) |
参考重量 Weight (approx.) |
|||||
| 内径 d | 外径 D | 宽度 B | 动负荷Cr | 静负荷Cor | 数量 Qty | 尺寸 Dia. |
脂润滑 Grease |
油润滑 Oil |
g | |
| mm | mm | mm | N | N | PCS | mm | ||||
|
604
|
4 | 12 | 4 | 716 | 282 | 8 | φ1.588 | 48000 | 56000 | 2.3 |
|
605
|
5
|
14
|
5
|
1328
|
507 | 7 | φ2.381 | 40000 | 50000 | 3.7 |
| 606 | 6 | 17 | 6 | 1961 | 731 | 6 | φ3.175 | 38000 | 45000 | 6.9 |
| 607 | 7 | 19 | 6 | 2617 | 1054 | 7 | φ3.500 | 36000 | 43000 | 8.2 |
| 608 | 8 | 22 | 7 | 3300 | 1370 | 7 | φ3.969 | 34000 | 40000 | 12.9 |
| 609 | 9 | 24 | 7 | 3368 | 1638 | 8 | φ3.969 | 32000 | 38000 | 16.0 |
| 6000 | 10 | 26 | 8 | 4596 | 1985 | 7 | φ4.763 | 30000 | 36000 | 19.0 |
| 6001 | 12 | 28 | 8 | 5110 | 2370 | 8 | φ4.763 | 28000 | 32000 | 22.0 |
| 6002 | 15 | 32 | 9 | 5590 | 2840 | 9 | φ4.763 | 24000 | 28000 | 30.0 |
| 6003 | 17 | 35 | 10 | 6000 | 3250 | 10 | φ4.763 | 22000 | 26000 | 39.0 |
| 6004 | 20 | 42 | 12 | 9390 | 5020 | 9 | φ6.350 | 18000 | 20000 | 69.0 |
| 6005 | 25 | 47 | 12 | 10060 | 5860 | 10 | φ6.350 | 15000 | 18000 | 80.0 |
| 6006 | 30 | 55 | 13 | 13243 | 8252 | 11 | φ7.144 | 13000 | 15000 | 116.0 |
| 6007 | 35 | 62 | 14 | 15956 | 10327 | 11 | φ7.938 | 11000 | 13000 | 155.0 |
| 6008 | 40 | 68 | 15 | 16824 | 11493 | 12 | φ7.938 | 10000 | 12000 | 192.0 |
| 6009 | 45 | 75 | 16 | 19969 | 13904 | 12 | φ8.731 | 9000 | 11000 | 245.0 |
| 6010 | 50 | 80 | 16 | 20673 | 15459 | 13 | φ8.731 | 8500 | 10000 | 261.0 |
